Description

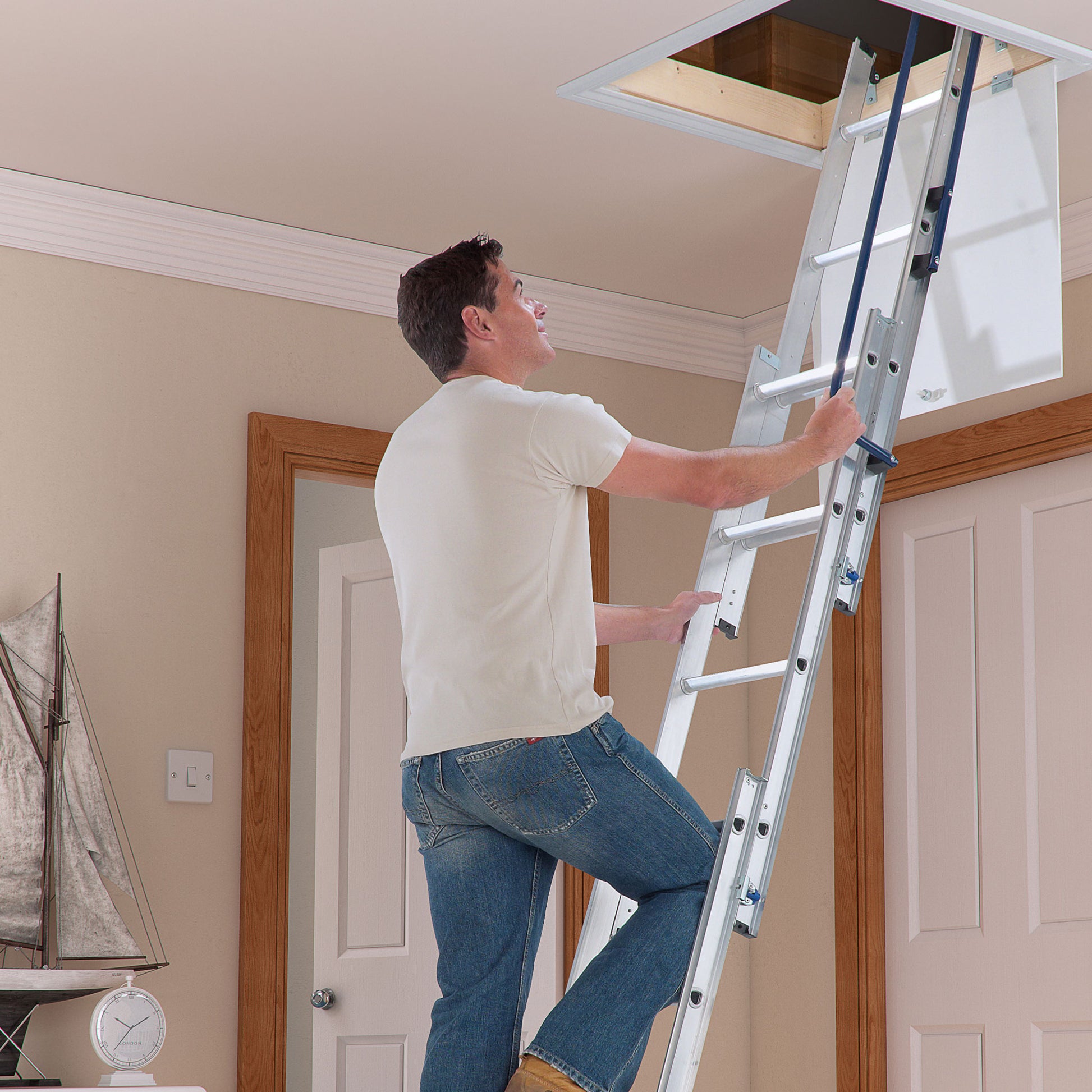

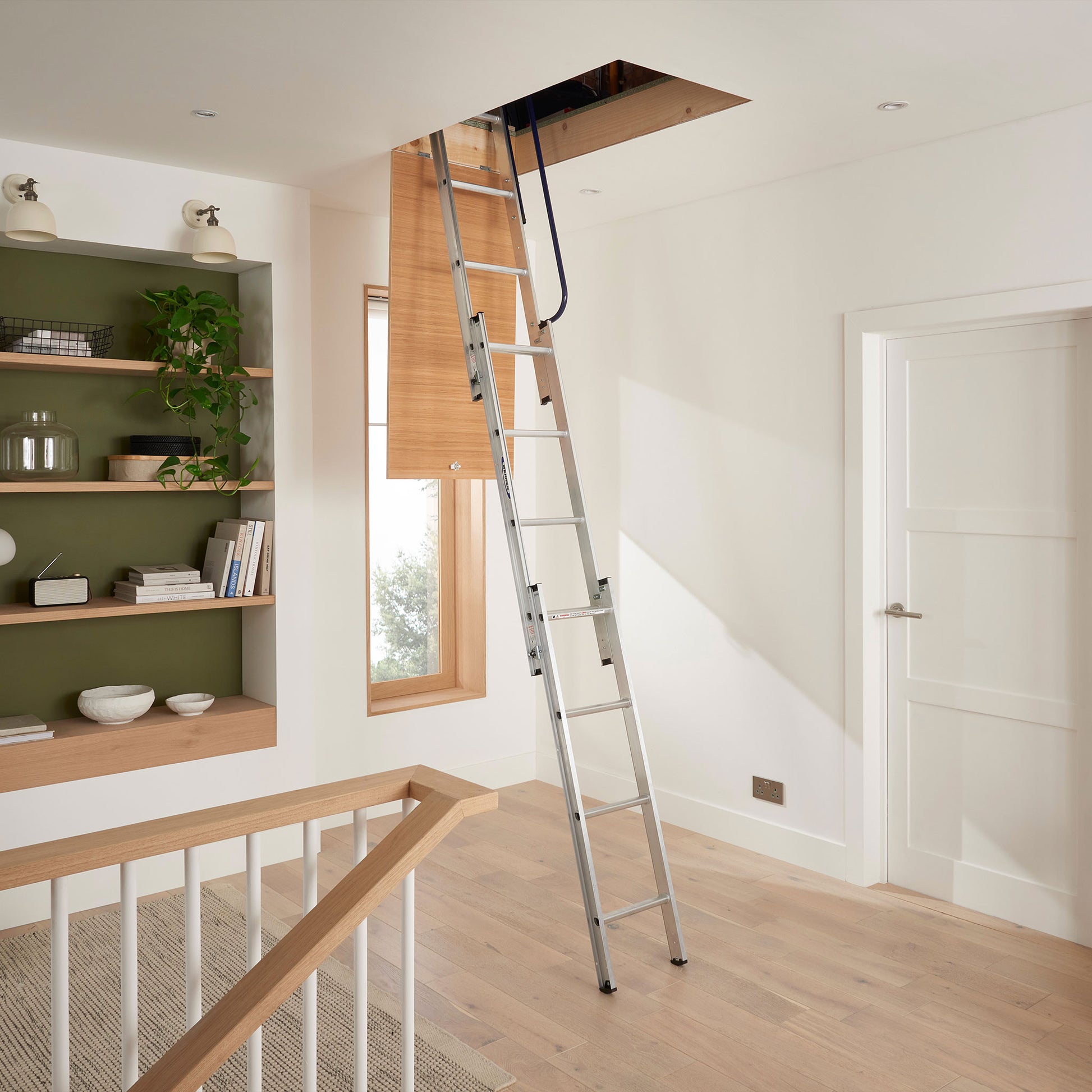

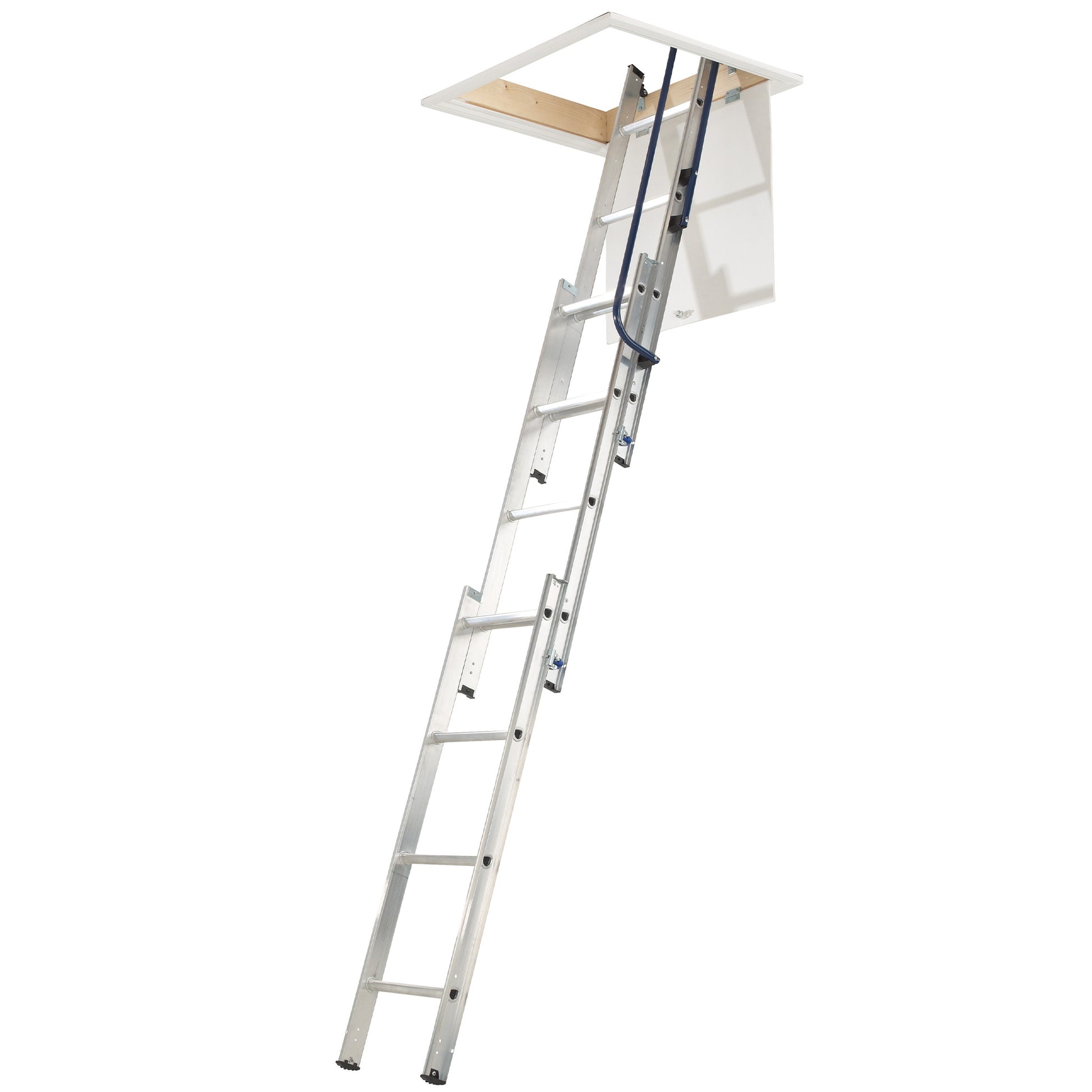

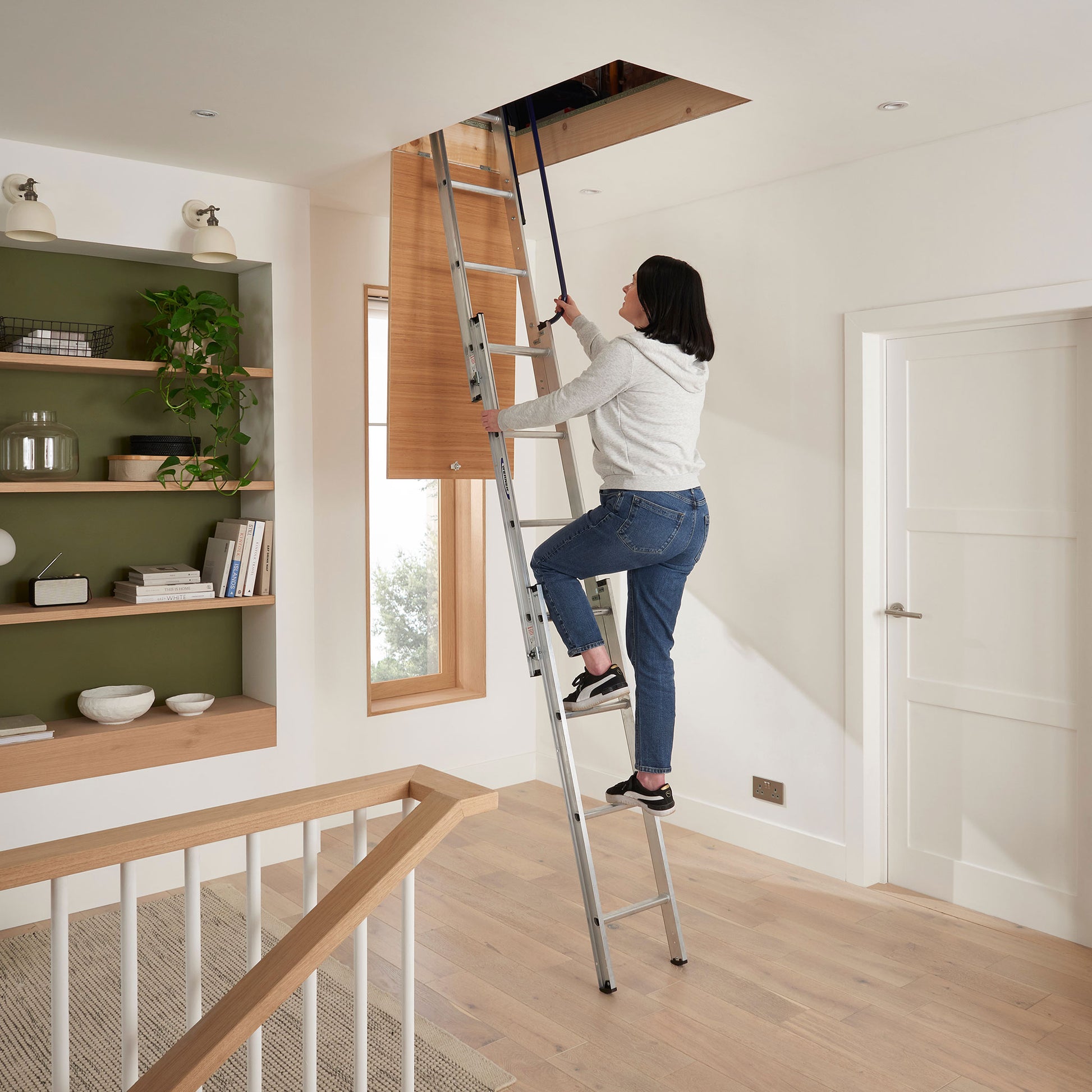

The Werner Easy Stow Aluminium Loft Ladder is the ideal solution for safe, convenient, and reliable loft access. This three-section overlapping loft ladder is permanently fixed inside your loft hatch, ready to be lowered when access is required. It is perfectly suited for floor-to-loft floor heights up to ().

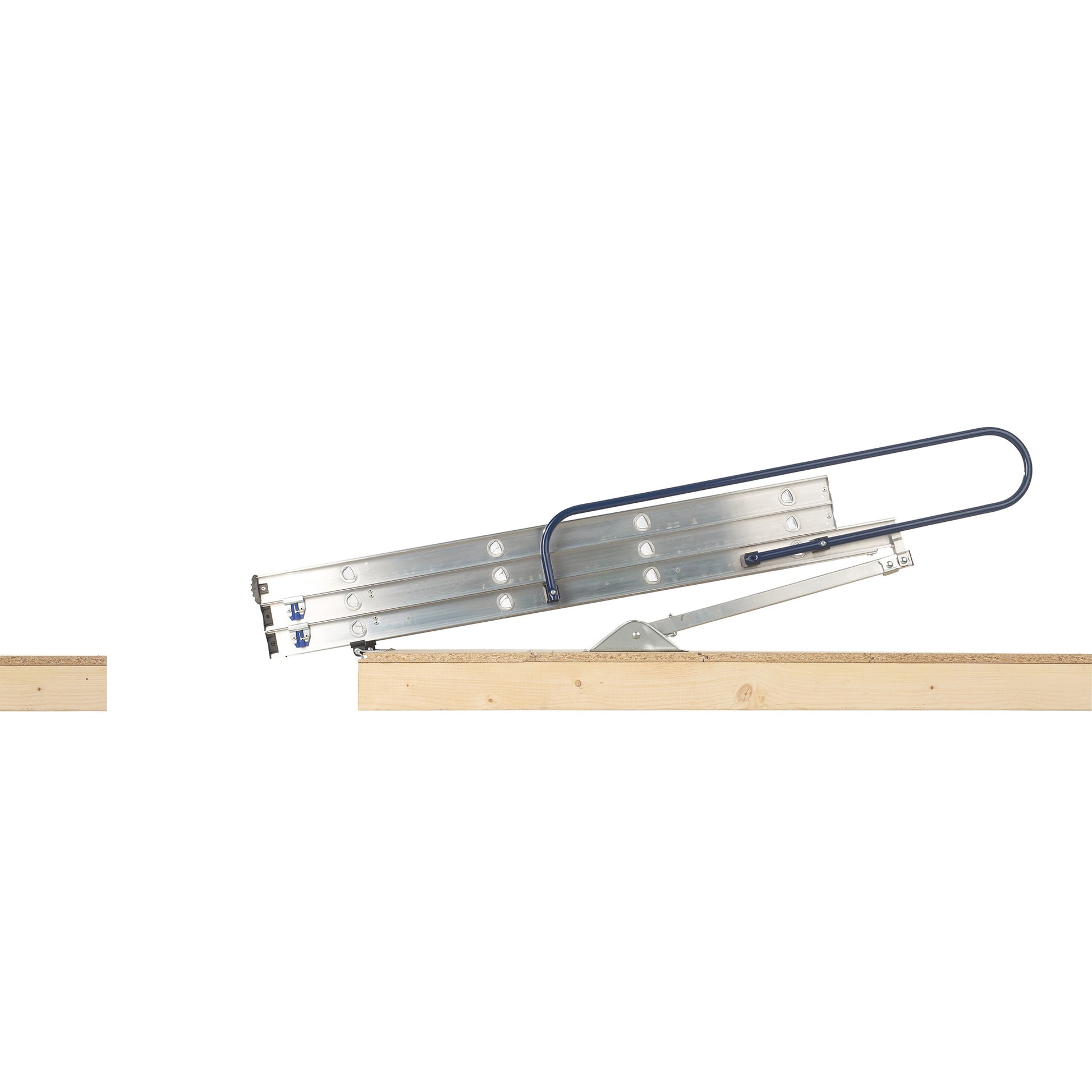

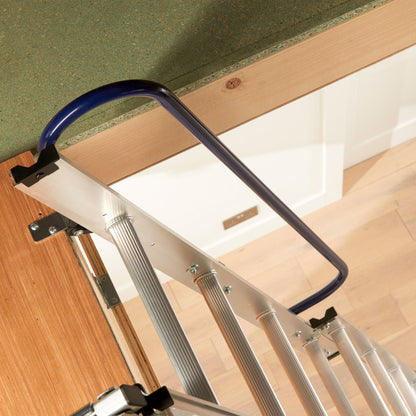

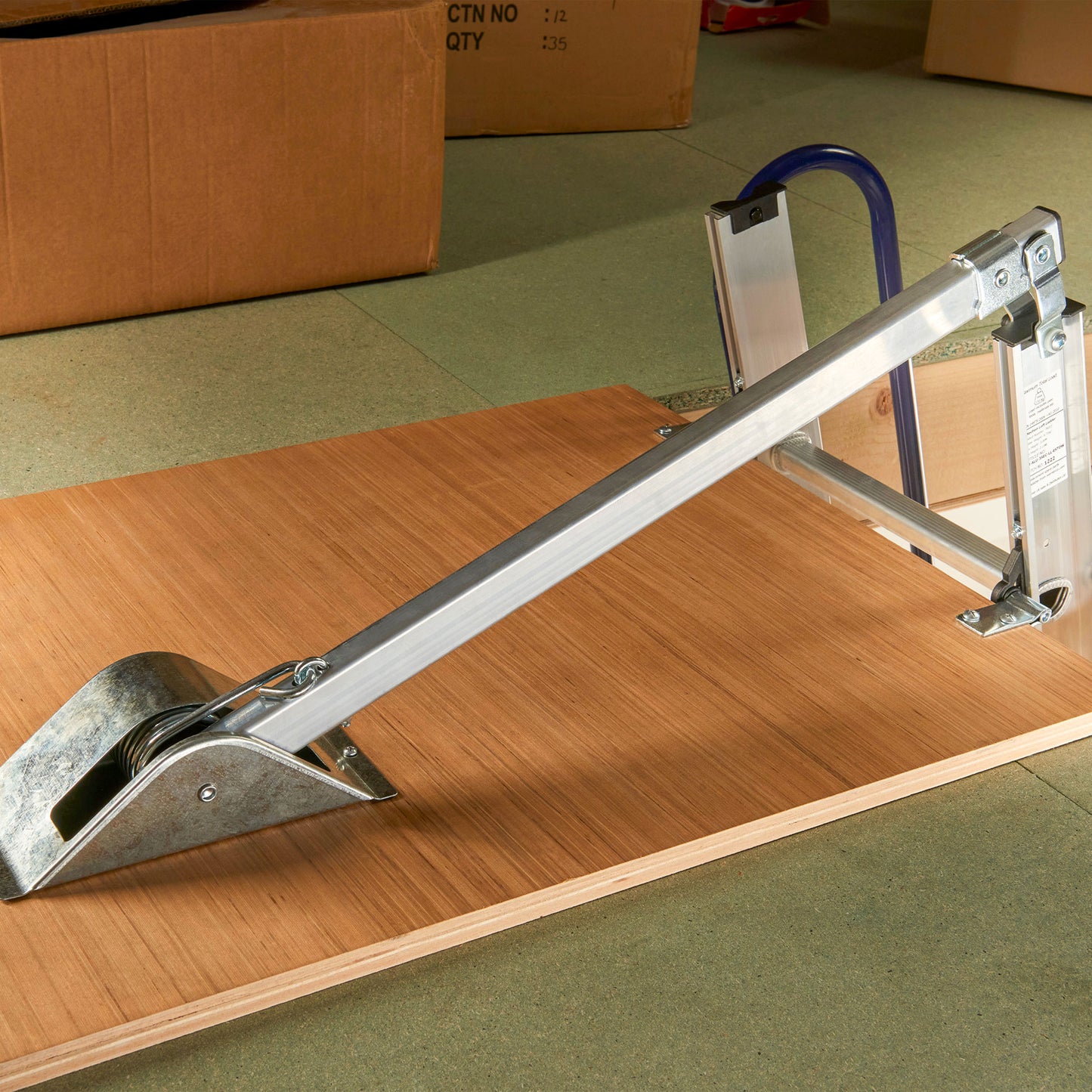

Engineered for effortless operation, the ladder features a spring-assisted Easy Stow system that provides total control when safely lowering or stowing the unit. Safety is paramount: the ladder includes an extended in-loft handrail for added security when entering or exiting the loft space, plus secure locking catches.
Users benefit from slip-resistant D-shaped rungs for comfort and security while climbing, along with slip-resistant feet for added grip on the floor. This easy-to-install model comes complete with all necessary fittings, including a universal stowing pole and comprehensive instructions. It supports a robust load capacity and is backed by a 5-year guarantee.
Features
- Easy Stow System: Spring-assisted design provides smooth, safe, and controlled lowering and stowing.
- Ideal Height Range: Suitable for floor-to-loft floor heights up to .

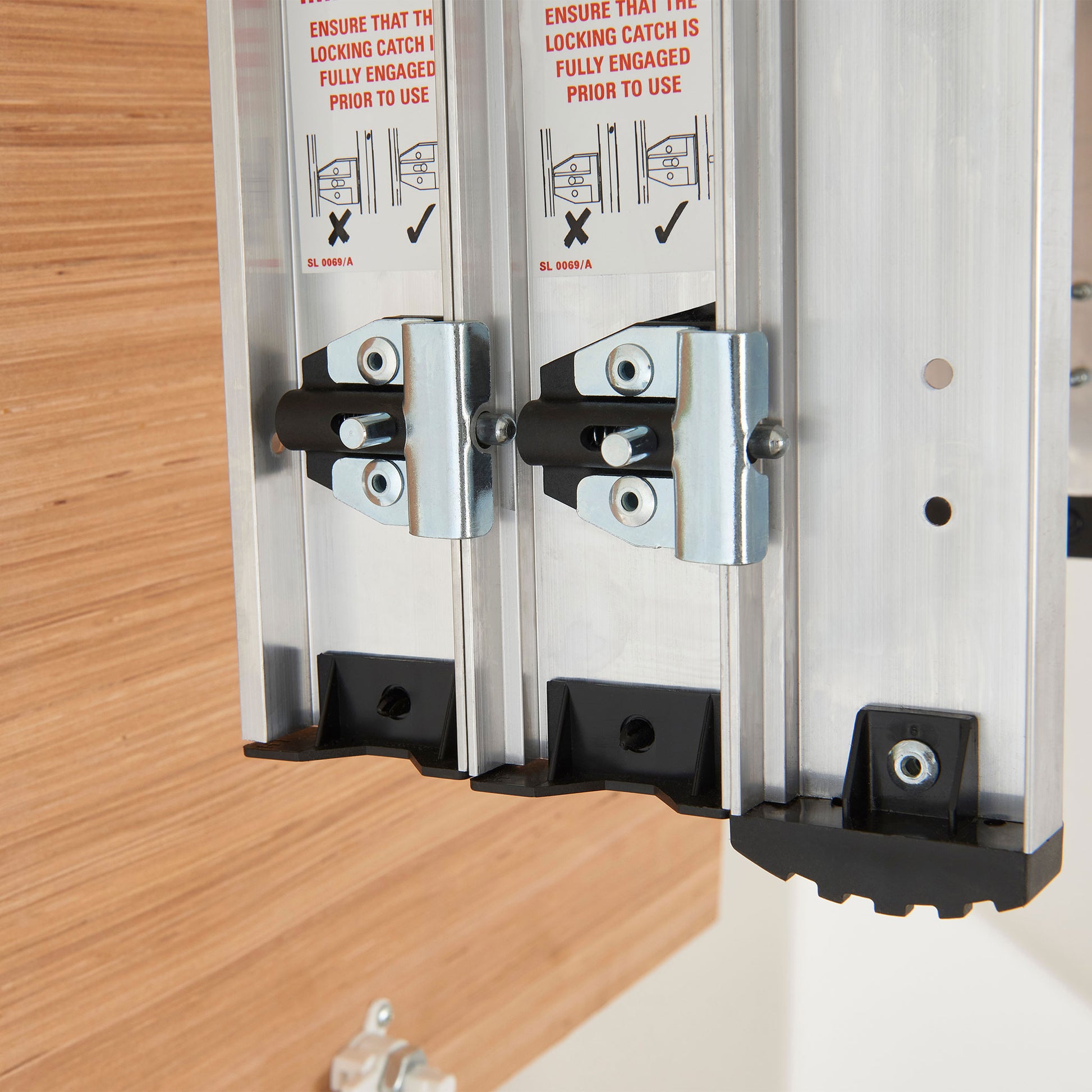

- Enhanced Safety: Includes an extended in-loft handrail and secure locking catches.
- Comfortable Climbing: Features slip-resistant D-shaped rungs and slip-resistant feet.
- Durable: Supports a load capacity.
- Simple Installation: Comes with all fittings and a universal stowing pole.
-

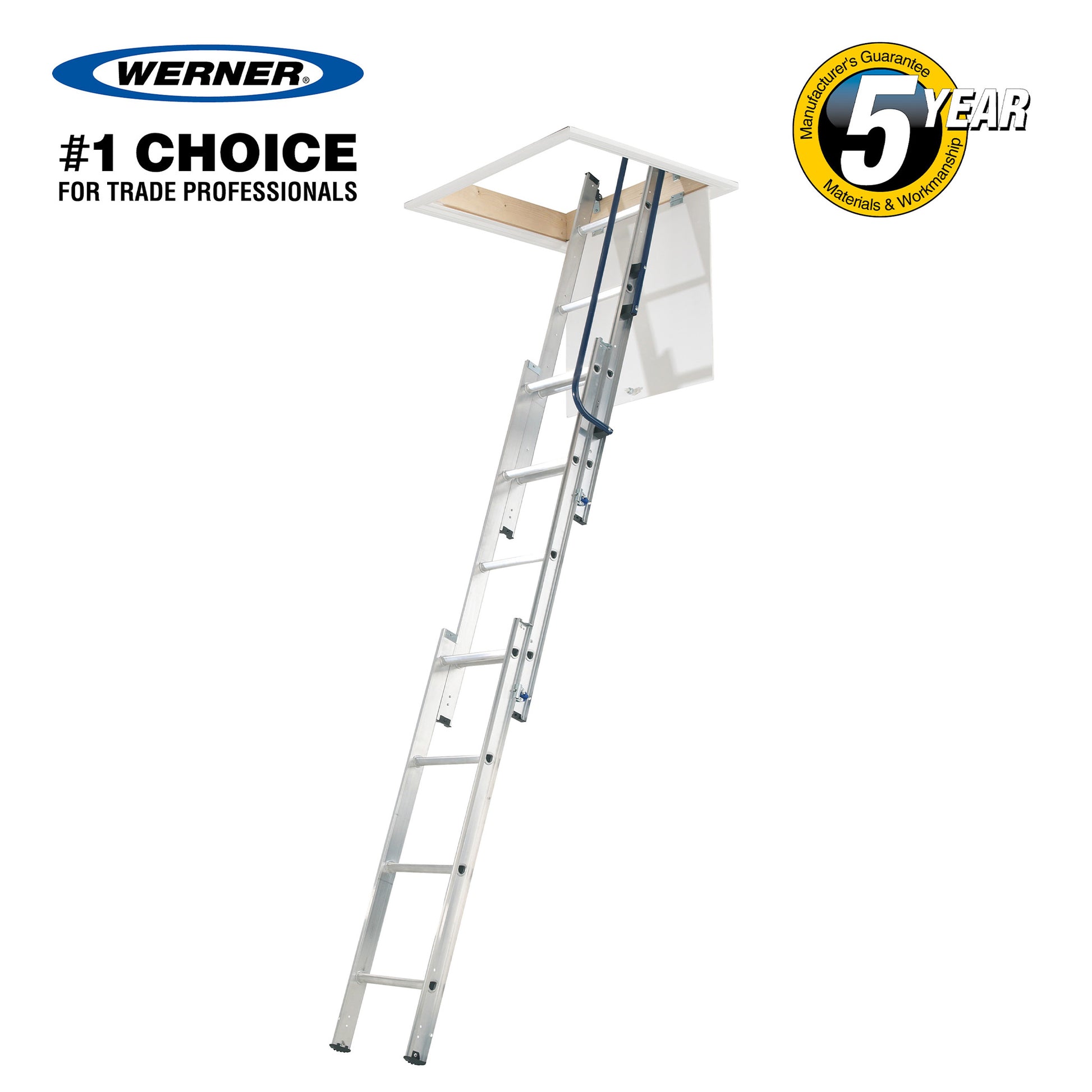

Guarantee: Backed by a 5-year guarantee against defects in workmanship and materials.
Specification
Details
| Size | 2.13m - 3m |
| Model ID | 76013 |
| Style | 3 Section |
| Project Type | Gaining access to unused space |
| Material | Aluminium |
| Certifications | EN14975 |
| Guarantee | 5 Year |
| Number of Sections | 3 |
| Sections x Rungs | 3 x 4 |
| Number of Treads | 12 |
| Number of People for Installation | 1 |
| Foot Material | Plastic |
| Unique Features | Lightweight Products,Small Hatch Openings,Handrail,Space-saving |
| Loft Features | Space-saving, Lightweight Products, Small Hatch Openings, Handrail |
| Unique Benefit | Safe soft access solution, includes handrail |
| Fire Rated | No |
| Opening Device | Stowing Pole |
| Door Included | No |
| Fits within Standard 0.6m Joist | NA |
| Height Extension Kit Available | No |
| Handrail Included | Yes |
| Hinge Clip Included | No |
| Locking Device | Yes |
| Pull Down Rod Included | No |
| Requires Cutting Foot Angle | No |
| Separate Foot Attachment | No |
| Universal Stowing Pole Included | Yes |
| EAN Code | 5010845760132 |
| Product Weight (kg) | 6.7kg |
| Closed Length (m) | 1.31m (4ft 4in) |
| Closed Width (m) | 0.33m (1ft 1in) |
| Closed Depth (m) | 0.17m (7in) |
| Max Load (kg) | 150kg (23st 9lb) |
| Max. Floor to Loft Floor Height (m) | 3m (9ft 10in) |
| Min. Floor to Loft Floor Height (m) | 2.13m (6ft 10in) |
| Max. Floor to Ceiling Height (m) | N/A |
| Shipping Weight (kg) | 6.95kg |
| Tread Width (m) | 0.28m (11in) |
| Rung Depth (m) | 0.03m (1in) |
| Rung Spacing (m) | 0.28m (11in) |
| Min. Clearance Arc (m) | 0.71m (2ft 4in) |
| Trapdoor Insulation Thickness (mm) | Trapdoor is not supplied |
| Min. Loft Floor Opening Size (LxW) (m) | 0.40m - 0.46m x 0.38m (1ft 4in - 1ft 6in x 1ft 3in) |
| Casing Length (m) | N/A |
| Casing Width (m) | N/A |
| Casing Height (m) | N/A |
| Shipping Dimensions L x W x D (m) | 1.31m (4ft 4in) x 0.33m (1ft 1in) x 0.17m (7in) |
